개요

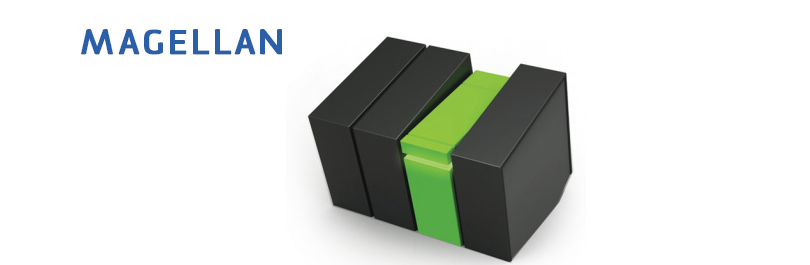

MAGELLAN은 LIBD (Laser Induced Breakdown Detection) 의 측정원리를 이용하여 수처리, Membrane Integrity, Filtration Process, 반도체 등의 공정에서 오염된 미세, 극미량의 입도를 분석하는 장비이다.
|
특징
- 최대 10nm에서 1 μm 영역의 입도분포 및 농도 측정
- Number Density : 104 particles/mL
- ng/L (ppt) 이하의 농도범위에서 탁월한 감도 제공
- 최대 8 Channel의 Resolution 제공
- 목적에 맞게 Sample Cell 선택 : Static 또는 Flow-through Cell
|
|
사양
| Particle size range |
10 - 1000nm (Up to 8 channels) |
| Concentration range |
104 to 1011 part/ml (Typically 10 ppt with 20nm particles) |
| Accuracy |
+/-10% (depending on measurement time) |
| Calibration |
Certified reference materials polystyrene (NIST) or customer reference |
| Sample preparation |
None - Standard laboratory practices for ultra-trace sample analysis |
| Standard sample cell configuration |
Static cell:3.5ml / Flow-through cell:up to 5 bars - 275μL - 4 mL/min(pump depending) |
| On demand sample cell configuration |
In situ / High pressure cell:up to 60 bars - 4 mL/min |
| Measurement technology |
Laser Induced Breakdown Detection (LIBD) |
| Laser source |
DPSS - Power < 50nW - Pulsed laser 100 Hz - TEM00 - @532 nm - Lifetime 2 Giga shots |
| Data processing algorithm |
Proprietary algorithm software developed with KIT:ASTROLIBD® |
| Detector |
Piezoelectric acoustic wave sensor (Patented) |
| Operating conditions / Storage conditions |
5°C to 40°C / -10°C to 50°C - Relative humidity/< 70% non condensing |
| Computer interface |
USB 2.0 - RJ45 - Serial Port - Windows 7 professional - 64-bit |
| Dimensions |
40cm x 30cm x 40cm (HWD) |
| Weight |
Analyzer < 25 kg / Computer < 10 kg |
| Power |
100 - 240 VAC, 50-60 Hz, 10A max |
| CE certification |
CE marked product - Class I laser product, EN 60825 - 1:2001, CDRH |
| Ingress Protection (IP) |
Housing IP54, Optics IP65 - (protection from dust and water) |
| |
|
|
 |
